CHJX4405JN
IVECO
IVECO AMBULANCE CHJX4405JN
(Diesel engine, High Roof)

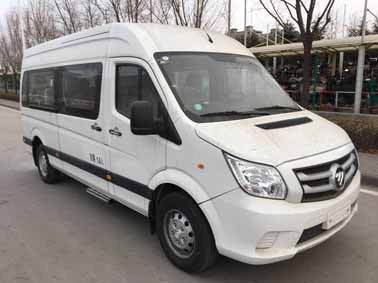

(Exterior and Interior pictures of ambulance are available in the end of file)
A | Technical parameters | |
wheelbase (mm)：3310 | ||
Turning diameter（m）：12.1 | ||
Overall dimensions (mm)：5990×2000×2970 | ||
Dimension of Patient's compartment (mm)：3600×1750×1940 | ||
Complete vehicle curb mass:(kg)：2740 | ||
GVW (kg)：4280 | ||
Engine：SOFIM8140.43E4 | ||
Fuel type: diesel | ||
Fuel consumption：9L | ||
Working manner: in-line, 4 cylinders, water-cooled, direct Injection turbocharged inter-cooled diesel engine | ||
Displacement (L)：2.798 | ||
Emission standard：CHINA V (equivalent to Euro V) | ||
Maximum power (kw)：100 | ||
Clutch: single plate, dry type, diaphragm spring, pull type clutch, mechanical inhaul cable | ||
Transmission: mechanical type, forward gear with synchronizer | ||
Front overhang/ Rear overhang: 1000/1680 | ||
Front wheel tread/ Rear wheel tread: 1695/1540 | ||
Brake system: four-wheel disc brake | ||
Max. speed (Km/h)：135 | ||
Steering system： power-assisted steering | ||
Tire：6.50R16C | ||
Fuel tank capacity（L）：70 |
