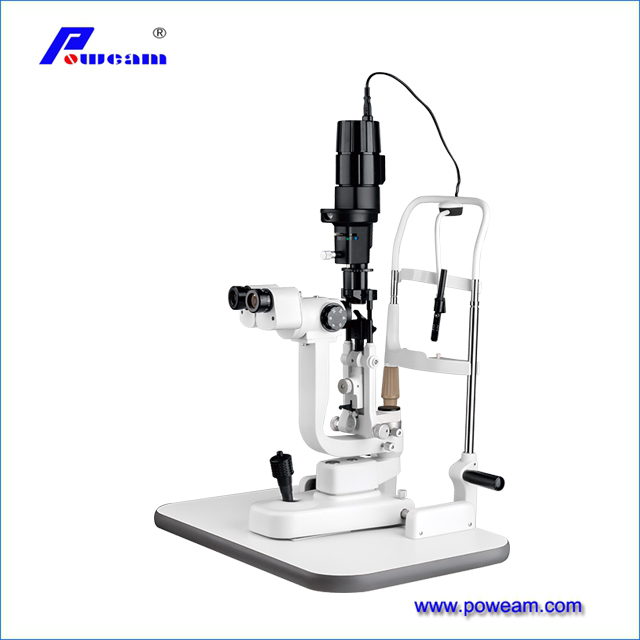

J5F1
POWEAM
Innovation design, filter disk can rotate 360, 4 more option filters can be Select.
Five-step drum magnification for eyepice. Sclera vein could be observed under the 40× magnification
All the optical lenses are moistureproof, mildewproof and anti-reflected ested
Large spot dismeter, slit length reach to 14mm, more comprehensive view of the eye contiton
Microscope | Microscope Type | Galilean stereoscopic microscope |
Magnification selection | 5 steps by drum rotation | |
Eyepiece | 12.5X | |
Magnification Ratio(Field of view) | 6X（33mm）, 10X（22.5mm）, 16X（14mm）, 25X（8.8mm）,40X（5.5mm） | |
Pupillary Adjustment | 50mm ~ 82mm | |
Diopter Adjustment | + - 7D | |
Base | Side Shift | 110mm |
Depth shift | 90mm | |
Height shift | 30mm | |
Chin rest | Height Shift | 80mm |
Fixation Target | Red LED | |
Illumination system | Slit Width | 0 ~ 14mm Continuous ( at 14mm , slit becomes a circle ) |
Slit Height | 0 ~ 14mm Continuous | |
Slit Angle | 0° ~ 180° adjustable | |
Slit Inclination | 5º, 10º, 15º ,20º | |
Diameter of Light Spot | Ø14mm, Ø10mm , Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm and 1 ~ 14mm Continuous | |
Filter | Heat Absorption, Grey, Red-Free, Cobalt, Blue, Green, Yellow, Red, Anti-UV | |
Illumination Bulb | 12v 50w halogen lamp | |
Power | Input Voltage | 110V / 220V AC |
Frequency | 50 / 60 HZ | |
Power Consumption | 68 VA | |
Weight and Size | Gross Weight | 18kg |
Dimension | 690mm(L) × 440mm(W) × 420mm (H) |
