Product Usage

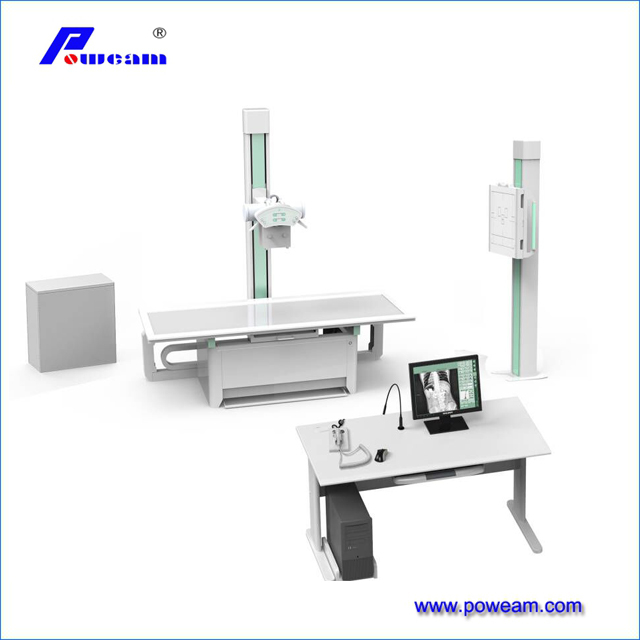

7300D high frequency digital x-ray equipment can meet different parts radiography, such as head, chest, abdomen, waist, lumber, thoracic, pelvis, limbs etc. And meet different positions radiography, such as lay decubitus, normotopia, side position etc. it is fixed digital x ray machine and we can use it at bus and truck.
Basic Configuration
Configuration | Model No | Quantity | Remarks |
Control Console | KZT10 | 1 unit | PLD |
High voltage generator | FSQ60 | 1 set | PLD |
X-ray tube assembly | E7252X | 1 unit | Toshiba |
Collimator | XSQ30 | 1 unit | PLD |
Radiography Table | SYC20 | 1unit | PLD |
Bucky Stand | XPJ30 | 1 set | PLD |
Detector | 2set | PLD | |
Image acquisition workstation | DRA20 | 1 set | PLD |
Color display | P1917S | 1 unit | DELL |
Machine accessories | 7300 | 1 set | PLD |
AEC | SSMC601 | 1 set | Optional |
Product Specification
Item | Content | Technical Parameters |
Power | Voltage | 380V±10% |
Frequency | 50Hz±1Hz | |
Capacity | ≥65kVA | |
Internal Resistance | ≤0.17Ω | |
High Frequency High Voltage X-Ray Generator | Power | 56KW |
Inverter Frequency | 440 KHz | |
Tube voltage | 40kV—150kV ,Steps 1kV | |
Tube current | 10mA—710mA | |
Exposure time | 0.1ms—10000ms | |
mAs | 0.1-900mAs | |
X-ray source assembly (TOSHIBA E7252X) | Input power | Big focus 75kW Small focus 27kW |
Anode thermal capacity | 210KJ | |
Anode maximum heat dissipation | 475W（667KHU/min） | |
Rotary anode speed | 9700rpm | |
Tube Focus:big/small | 1.2mm /0.6mm | |
Wireless Flat Panel Detectors | Active area | 427(H)×427(V) |
Pixel matrix： | 3072(H)×3072(V) | |
Pixel pitch: | 139 μm | |
Cycle time: | Less than 6 s | |
Limiting resolution | 3.1 lp/mm typ | |
A / D transition: | 14bit | |
Energy range | 40 - 150 kVp | |
Maximum entrance dose (low gain) | 4 mR / frame | |
Power Input: | DC 24V 2A | |
Collimator (XSQ30) | View light: | Light Halogen, AC24V/100W |
Visible light exposure brightness Average illumination brightness: >100Lux | ||
Illuminator turn-on time limit up to 30±2S | ||
Bucky Stand （XPJ30） | Up and down movement | Not less than 1300mm |
Table （SYC20） | SID | 500~1280mm |
Table bearing | 135kg | |
Image acquisition workstation DRA20
Computer system
Processor: Intel Core Quad Core Processor i5-6500 (3.20 GHz)
Memory: 4 GB DDR3L
Hard disk: 1T SATA (7200rpm)
Optical drive: DVD-RW disc burner
Display: P1917S 19 "Dell
Workstation software
Basic skills:
Registration: new patient; emergency registration; appointment registration; RIS registration;
Local database: Set query conditions; sort the query results and modify the title bar.
Check: edit patient basic information; output patient check; close check; delete registered check; protect existing check; multi-protocol check; add, delete and copy position in check; reject captured image; restore rejected image; Switch between.
Additional functions: adjust the exposure parameters and exposure sequence; save the adjusted exposure parameters; adjust the orientation of the X-ray tube and the buck; plate status indication; exposure status display; generator control; image preview.
Image processing functions: LUT curve and symphony image processing; view patient and exposure dose information; image arbitrary and custom size cropping; add body position and arbitrary markers; add notes information; image selection; image scaling; image partial magnification; window width window ; image movement; image inversion; clockwise rotation; counterclockwise rotation; vertical flip; horizontal flip; window display; 1:1 display; 1X1 layout; 1X2 layout; 2X2 layout; 4X4 layout; distance measurement; angle measurement; image reset ; image deletion; brightness adjustment; black and white adjustment; image reprocessing; image queue transmission and export; image printing, printing film typesetting; image film scaling.
System management functions: workstation information; user management; emergency registration settings; information statistics; detector calibration; configuration tools.
User Management: Add User; User Permission Settings; User Password Modification; Delete User.
Emergency registration settings: new emergency registration; delete emergency registration; modify emergency registration information; default inspection protocol.
