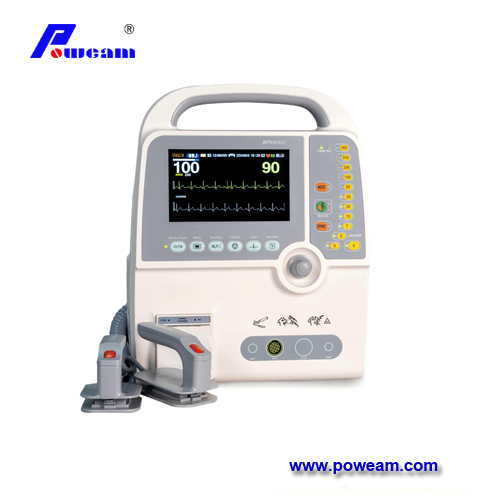

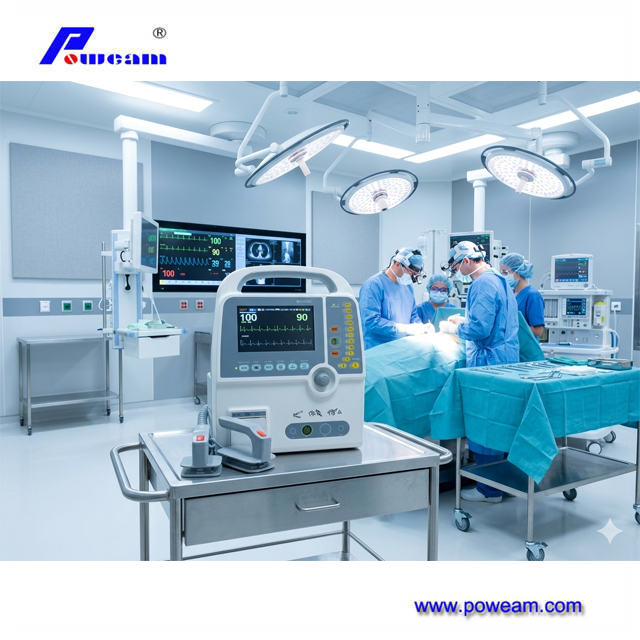

Biphasic Defibrillator Monitor

Defibrillator

Defibrillator type       Manual, Synchronized, Asynchronized,

Energy accuracy+/-1%

Energy selection   0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at a resistance of 50)

Charging time    Maximum 10 seconds to 360 Joules

Standard Adult/Pediatric Paddles

Reusable external adult  paddles (pediatric paddles integrated)

Power requirements

AC Power supply 100V~240V, 50Hz/60 Hz

DC 12V

Internal Battery Backup

Battery type          Rechargeable lead-acid battery (12V 2.0Ah  X2)

Charging time       Time-Minimum of 4 hours for full charging

Battery charging       During AC Power Supply operation of the device.

Charging /Low Battery Indication      Red LED

Battery Capacity      120-min monitoring and 30 discharges at 360 joules after full charged.

Display

7” color LCD display

Resolution            480X234

ECG

ECG lead: I, II, III, AVR, AVL, AVF, V1-V6

S-T segment analysis: -2.0-2.0mv

Arrhythmia analysis

Protection: With stand 4000vAc/50Hz voltage in isolation

work against electrosurgical knife and defibrillation

Respiration

Measurement method: Thoracic impedance

Standard parameter & configuration

ECG/ RESP/DEFIBRILLATOR

Optional parameter

Recorder, Li-ion battery (11.1V 4Ah  X2)
