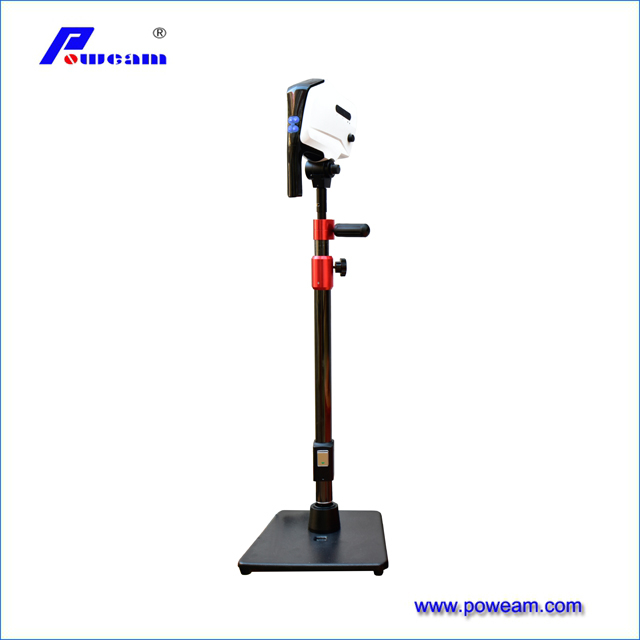

JDY-FHD-1
POWEAM
JDY-FHD Series Video Colposcopes are precise optical and electronic instruments designed especially for the gynecologic examination and diagnosis. Due to the microscopic magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. JDY-FHD Series Video Colposcopes are featured for sharp image, high resolution, true color reduction and easy operation. They are the essential instruments for gynecologic examination.
FHD Camera: Sony 1/2.8” Exmor R CMOS
Max. resolution: 1920*1080P
Focal length of objective: F=300mm
Total magnification: 3X-36X Zoom
Working distance: 200mm-350mm
Focusing mode: Auto and manual
Video output interface: HDMI
Menu: focusing, white balance, exposure, color, ICR etc
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>10000lx
Filter: Build-in green filter
Power supply input: AC100V-240V/50HZ-60HZ
Power supply adapter: DC12V3A, 36W
Mobile floor stand: With hanging arm (height 160cm, max. extension 115cm), the hanging arm is adjustable for height
Microscope height adjustment range: 76cm-130mm
Optional accessories: Monitor (S24R352FHC, S24F350FHC), Monitor mount GM112B, Video capture HDMI to USB3.0, Colposcope image capturing and reporting soft
Video Colposcope:
FHD Camera: Sony 1/2.8” Exmor R CMOS
Max. resolution: 1920*1080P
Focal length of objective: F=300mm
Total magnification: 3X-36X Zoom
Working distance: 200mm-350mm
Focusing mode: Auto and manual
Video output interface: HDMI
Menu: focusing, white balance, exposure, color, ICR etc
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>10000lx
Filter: Build-in green filter
Power supply input: AC100V-240V/50HZ-60HZ
Power supply adapter: DC12V3A, 36W
Upright stand: Column height adjustable range 24cm, column swing angle ±8°
Microscope height adjustment range: 86cm-110mm
Optional accessories: Monitor (S24R352FHC, S24F350FHC), Video capture HDMI to USB3.0, Colposcope image capturing and reporting soft
JDY-FHD Series Video Colposcopes are precise optical and electronic instruments designed especially for the gynecologic examination and diagnosis. Due to the microscopic magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. JDY-FHD Series Video Colposcopes are featured for sharp image, high resolution, true color reduction and easy operation. They are the essential instruments for gynecologic examination.
FHD Camera: Sony 1/2.8” Exmor R CMOS
Max. resolution: 1920*1080P
Focal length of objective: F=300mm
Total magnification: 3X-36X Zoom
Working distance: 200mm-350mm
Focusing mode: Auto and manual
Video output interface: HDMI
Menu: focusing, white balance, exposure, color, ICR etc
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>10000lx
Filter: Build-in green filter
Power supply input: AC100V-240V/50HZ-60HZ
Power supply adapter: DC12V3A, 36W
Mobile floor stand: With hanging arm (height 160cm, max. extension 115cm), the hanging arm is adjustable for height
Microscope height adjustment range: 76cm-130mm
Optional accessories: Monitor (S24R352FHC, S24F350FHC), Monitor mount GM112B, Video capture HDMI to USB3.0, Colposcope image capturing and reporting soft
Video Colposcope:
FHD Camera: Sony 1/2.8” Exmor R CMOS
Max. resolution: 1920*1080P
Focal length of objective: F=300mm
Total magnification: 3X-36X Zoom
Working distance: 200mm-350mm
Focusing mode: Auto and manual
Video output interface: HDMI
Menu: focusing, white balance, exposure, color, ICR etc
Illumination: Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>10000lx
Filter: Build-in green filter
Power supply input: AC100V-240V/50HZ-60HZ
Power supply adapter: DC12V3A, 36W
Upright stand: Column height adjustable range 24cm, column swing angle ±8°
Microscope height adjustment range: 86cm-110mm
Optional accessories: Monitor (S24R352FHC, S24F350FHC), Video capture HDMI to USB3.0, Colposcope image capturing and reporting soft
