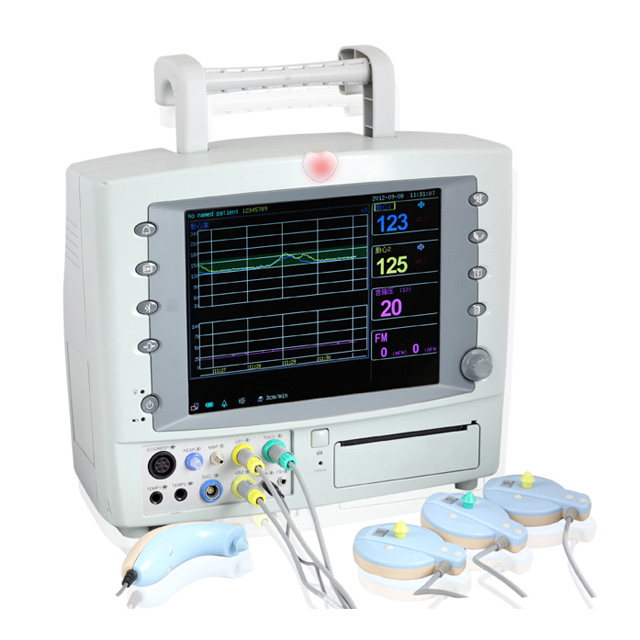

FM10A
Poweam
●Display: 10.4 inch color TFT LCD screen with monitor wave and data
●Monitor the FHR( fetal heart rate), TOCO, FM(fetal movement) and FM waveform.
●Calculation and display of auto/manual fetal movement
●The color of parameters and waveforms settable as per user's preference
●At least 24 hours CTG data storage, selectable review and print after power off
●25mm/s high speed printing of stored CTG data
●Print-speed Selectable: 1cm/min\2cm/min\3cm/min\25mm/sec
●Alarm reviewable
●Auto/manual patient ID generation, easy user-management & data searching.
●Audio and visual alarm; Lightness and volume are adjustable
●Alarm & remark are available for probe moving and abnormal condition
●Display/offset print of Twins FHR(fetal heart rate) waveform
●3 display mode: Fetal, fetal and maternal, maternal, either mother or fetal emphasis morning selectable
●Real-time print and timing print
●Event remark function
●Built-in rechargeable high energy battery
●The printer's buffer, selectable and auto shutdown printing are available.
●Independent network function available. Support remote, wireless, wired mixed central monitor network.
●Optional maternal monitoring funciton.
Specification:
●FHR (Fetal heart rate)
●Ultrasound frequency: 1MHz ± 1KHz
●Measurement range: 30~240bpm
●Resolution: ± 1bpm
●Alarm & accuracy: Up limit: (30~240)bpm, ± 5%
●Lower limit: (30~240)bpm, ± 5%
TOCO:
●Range: 0~100%
●Resolution: 1%
●Zero-mode: Manual. 5, 10, 15, 20 TOCO base-line adjustable
●Pressure measure accuracy: 7%
Fetal movement
●Manual and auto fetal movement mark
●Auto fetal movement waveform
●Wide-line printer
●Printer paper: Foldable Z-type thermal paper
●Width: 110mm
●Printing speed: 1cm/min, 2cm/min, 3cm/min and fast buffer printing of 25cm/sec
●Power supply: 100~240VAC, 50/60Hz
Fetal mode
●Fetal/maternal mode
●Maternal mode
●Model Function/configuration
FM-10A FHR, TOCO, fetal movement, built-in battery, 110mm wide-line printer
FM-10APlus FHR, TOCO, fetal movement, built-in battery, 110mm wide-line printer, maternal parameters include NIBP, SpO2, PR, ECG, RESP, TESP
●Optional item Twin FHR, Fetal awake-up alarm, wireless network
