PM1200D
POWEAM

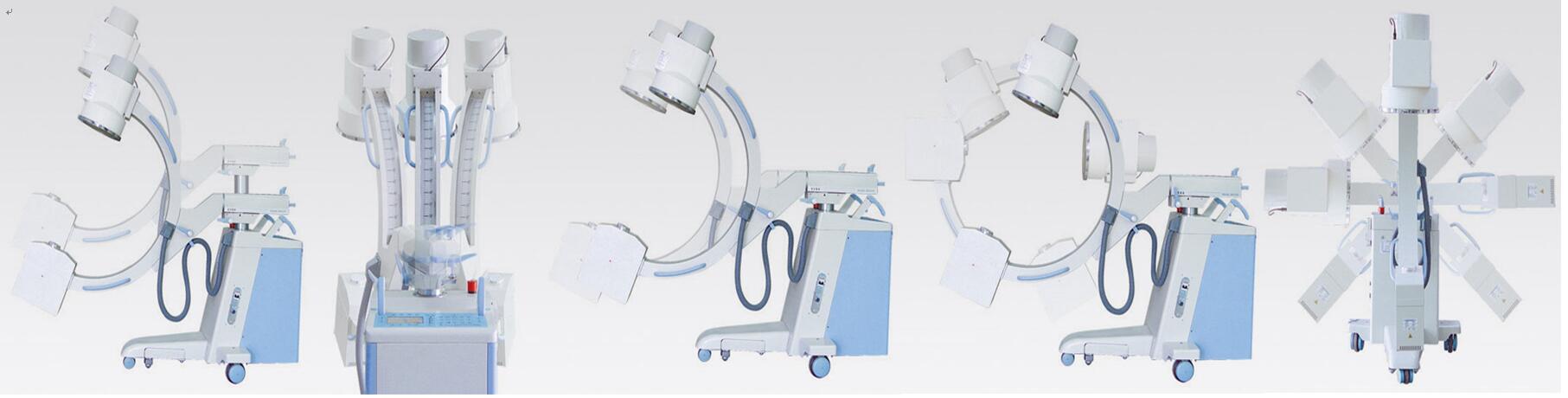

High Frequency Mobile Digital C-arm System
1,Monoblock
1.1 Focus:0.6/1.8
1.2 Anode capacity:35.5kJ(47kHu)
1.3 Tube Heat capacity:650kJ(867kHu)
1.4 Power output:3.5kW
1.5 Inverter Frequency:≥40kHz
1.6Continous Fluoroscopy (Manual/automatic)
1.6.1 Tube voltage:40kV~110kV
1.6.2 Tube current:0.3mA~4mA
1.6.3 Automatic brightness tracking function
1.7Pulse fluoroscopy
1.7.1 Tube voltage:40kV~110kV
1.7.2 Tube current:0.3mA~8mA
1.8 Radiography mode
1.8.1 Radiography:40kV~110kV
1.8.2 Radiography tube current:63mA
1.8.3 Radiography mAs:1.0mAs~125mAs
1.9 Beam limiter: Electric iris + linear symmetrical rotatable
1.10 Working environment conditions
1.10.1 Environment temperature :10°C-40°C
1.10.2 Relative humidity:30%-75%
1.10.3 Atmospheric pressure:700hpa-1060hpa
1.11 Operating power condition
1.11.1 Power supply voltage and phase number: single-phase 220V ± 22V
1.11.2 Power frequency:50Hz±1Hz
1.11.3 Internal resistance of power supply: no more than 1 Ω
2, Imaging system
2.1 image intensifier: 9 ″ three field e5764sd-p3, center resolution 4.8lp/mm
2.2 Ultra low illuminance, megapixel black and white progressive scanning camera pixel matrix description: 1024x1024
2.3 LCD: 24 inch ordinary LCD, resolution 1920x1200, working frequency: 60Hz
2.4 image acquisition and processing workstation
2.4.1 Registration: Registration preservation, medical record query, worklist
2.4.2 Acquisition: start acquisition, prepare recording, reset, horizontal mirror, vertical mirror, window adjustment, magnifying glass, negative image, edge
Edge enhancement, recursive noise reduction
2.4.3 Processing: four windows, nine windows, sharpening, horizontal mirror, vertical mirror, text annotation, length measurement
2.4.4 Report: save, preview, expert template
2.4.5 DICOM function: DICOM browsing, network service
2.5 image definition index
2.5.1 gray level: ≥ 11
2.5.2 line pair resolution: ≥ 2.0LP/mm
| Name | High Frequency Mobile Digital C-arm System |
| Model | PM1200D |
