Peristaltic Mini Medical Infusion Pump with Drop Sensor

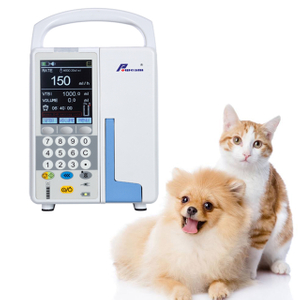

Product Name: Infusion pump CI-1000A
Infusion pump CI-1000A is with a full function of audio and visual alarm and exact infusion-controlled
function. It is used widely, safely and reliably
Infusion Pump CI-1000A can control the flow rate automatically. It is not just available for the intravenous
infusion of normal brine and dextrose, but also for the infusion of high surface tension.
Standard IV set.
The battery supply system can guarantee the continue infusion when move the patient or the AC power is
disconnected.
The finger pump is detachable and can be washed in water.
The tube clamp is detachable and can be washed in water.
Easily operate with single hand by using the side handle.

Specifications
Product name: Infusion pump CI-1000A
Applicable IV set:: Stand IV set with outer diameter 3.4 ~ 4.5 mm
Pumping mechanism: Peristaltic finger pump
Infusion mode: Volumetric
Maximum flow rate: 999.9 mL/h
Flow rate accuracy: ±5% (after calibration)
Volume infused display: 0 ~ 9999 mL
Volume limit: 1 ~ 9999 mL
KVO (keep vein open): 1 mL/h
Air-in-line detection: Ultrasonic with 8 sensitivities setting
Occlusion pressure: 40 ~ 140 KPa, 8 sensitivities setting
Sound volume: 8 levels setting
Max. power consumption: ≤25VA
Peristaltic finger pump: Detachable
Tube clamp: Detachable
Display: Color LCD with high brightness
AC power: AC100V ~ 240V, 50Hz/60Hz
Internal battery: Rechargeable Ni-MH battery, DC12V,2000mAh, life: approximately 4 hours at 25mL/h
Net weight: 2.3 kg
Dimensions: 150mm x 150mm x 235mm
Audio and visual alarms: Air-in-line, Door open, Occlusion, Infusion finished, No operation, Battery low,
Pump error, Motor reverse, Pressure abnormity, Sound abnormity, AC power lost.

Working conditions
Temperature: +5°C ~ +40°C
Relative Humidity: 20% ~ 90%
Atmospheric Pressure: 70KPa ~ 106KPa
