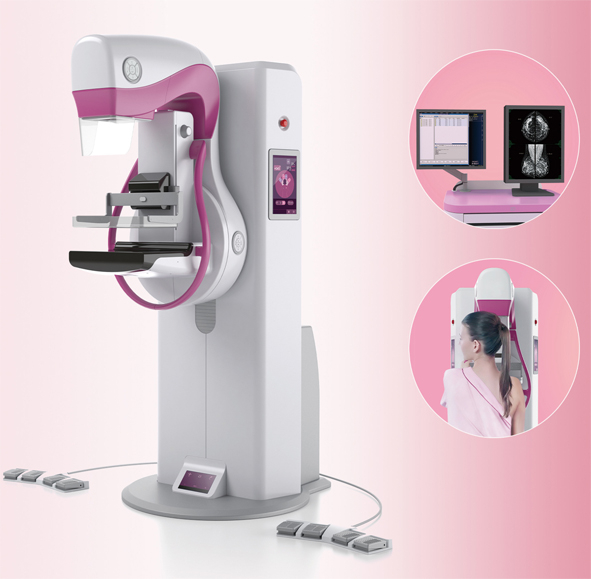

Digital Mammography System

Mammography System Rating power:11000VA

Integrated System (Generator Integrated  in the main device)

Could support Tomosynthesis function with updated version

High voltage generator output: ≥100 kHz, 20 kV to 49 kV increment step: 1 kV

High performance X-ray tube:

Tungsten Anode, Focal Spot Size: 0.1 mm (Small)/ 0.3 mm (Large)

Support iso-center rotation function

C-arm Rotation range: +180°- -180°

Height range of breast support surface: 650mm-1350mm;

C-arm power-driven electrically, Dual side digital display;

Compression plate: flexible and multi-level smart Compression

Spatial Resolution: max 7 Lp/mm

Detector type: Amorphous Silicon Detector

Effective Imaging Area: 24*30cm

Acquisition Station compatible with DICOM 3.0

Focal distance : 650mm

Added filter:  Rh/AG/Al

Added filter Switch: Automatic

X-ray Field adjustment: Automatic

Magnification factor: 1.5

Exposure mode: Manual / AEC

Supply: 220V-,±10%

Frequency: 50/60Hz

Max. power : 11000 VA

High voltage generator

N.W.: 500 Kg
